Product name: IV Infusion FLUID WARMER
  • Packaging Details:EXPORT STANDARD CARTON
  • Delivery Time: Shipped in 30 days after payment
  • Description:
    • Type:
    • First-Aid Devices
    • Brand Name:
    • HIPROVE
    • Model Number:
    • HIP-IVF
    • Place of Origin:
    • Shandong, China (Mainland)
    • Product name:
    • IV FLUID WARMER
    • Digital control:
    • High accurate
    • Application:
    • Children, neonates and VET
    • Tube Size:
    • 3.0~4.0mm
    • Flow Rate:
    • 2~20ml/min (against temperature span: 25~41)
    • Classification:
    • Class I / Type B
    • Feature:
    • Aid Device
    • Warranty:
    • 18 Months
    • Certificate:
    • CE ISO
    • MOQ:
    • 1 Set
    •
DETAILED

 Our blood warmer is the best quality in China.We have enough experience in blood warm industry more than 15 year.For now,we are a listed company in China.We can provide OEM service to print your logo.Welcome to visit us.Hope we can establish a long term business relationships.



1,Conditions of transportation and storage

Ambient temperature: -40~+55℃

Relative humidity: ≤80%

2,Operation conditions

Ambient temperature: 5~40℃

Relative humidity: ≤80%

Power supply: AC 220V+22 V

Frequency: 50Hz+1 Hz

Power: ≤250VA

Temperature control: at the inlet, the solution temperature ranges between (20±2)℃, and the flow rate ranges within 40~150 drops/min. The infusion warmer, with its heating body, can control the solution temperature at the outlet within 30~41℃. The temperature control allowance is ±1.0℃.

Display resolution: 0.1℃

Suitable infusion rate: 40~150 drops/min

Safety measure: the power supply will be automatically cut off when the heating body reaches 43℃.

Applicable range: this product is used to warm the infused solution in the operating room and in-patient department.

Max. weight: less than 2.5kg

II. Components of system

HIP-TF-I Infusion Fluid Warmer is consisted of below four parts:

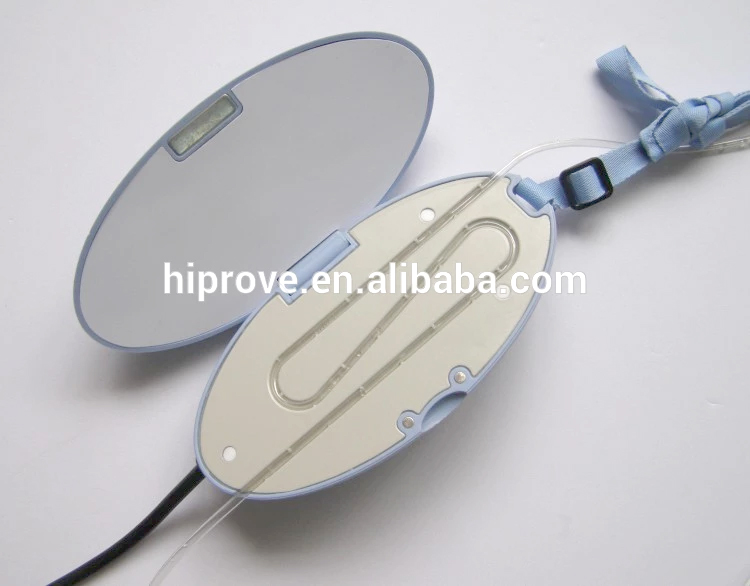

1. Heating source: the component that heats the infusion fluid through the warmer, including heating parts and the aluminum grooves used for installation of infusion tubing sets.

2. Power supply: supplying power to the device.

3. Controlling module: the circuits for temperature measurement, temperature displaying and heating parts controlling.

4. Shell body: including metal heating shell, fixed bracket, operation pan
